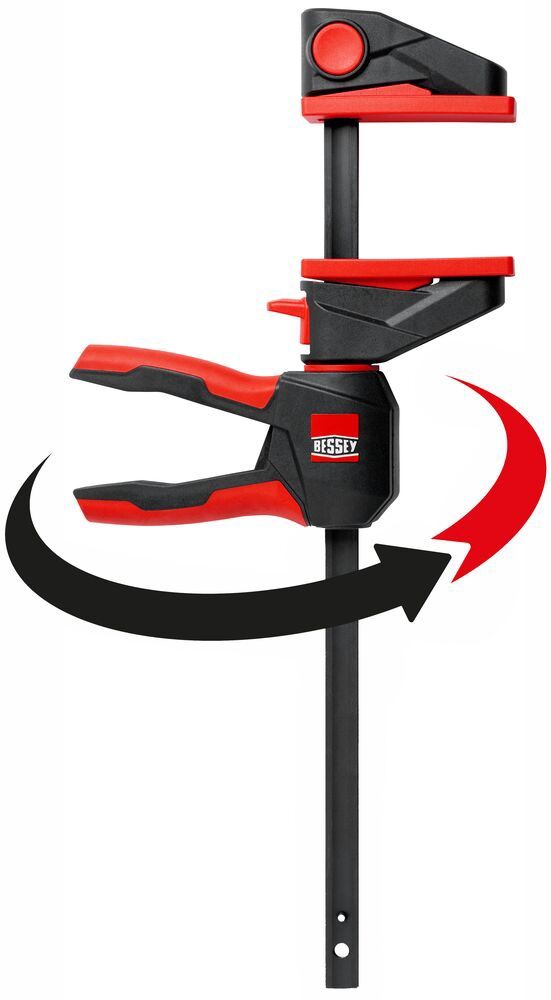

BESSEY EZ360 one-handed clamp is extremely veratile thanks to the innovative 360° turning mechanism to perfectly adjust the handle position to the clamping task. The clamp features long protective caps to protect the workpiece surface and distribute the clamping force of up to 1,400 N. On the one hand, the handle can be positioned in such a way that an optimal pumping position and thus better application of force is achieved. On the other hand, the handle can also be swivelled out of the working area after the clamping process, thus enabling several clamps to be placed in a very confined space.

Supplied with:

1 x EZ360-30 300mm One Handed Clamp

Key Features

• Innovative 360° rotating mechanism allows the handle unit to be placed around the rail – already before but also after fastening the clamp
• 12-step latching mechanism to securely hold the selected handle position
• Large clamping surfaces with removable protective caps
• Clamping force up to 1,400 N
• Can be repositioned for spreading – without tools thanks to simple release mechanism by push-button on the top part
• One-handed operation with little effort required

Specification

Opening: 300mm
Throat Depth:80mm
Spreading Width: 195-365mm
Rail: 18x5mm
Weight: 0.87kg
