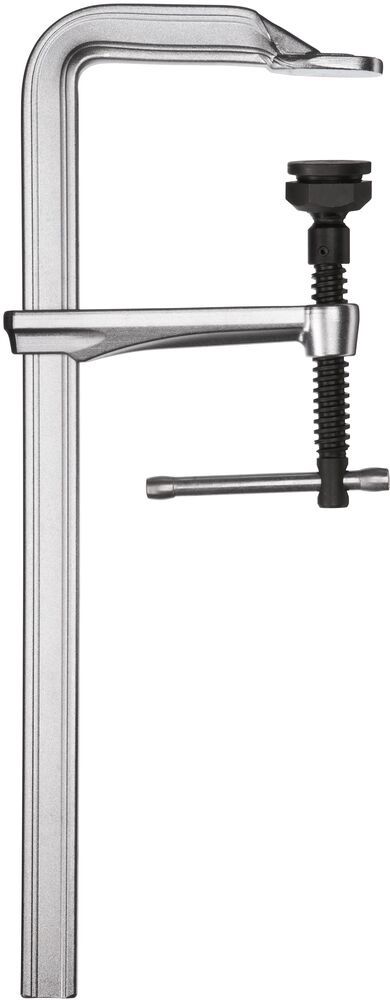

The Bessey SG40M Heavy-Duty high performance all steel screw clamp provides maximum stabilty. The optimised profile shape guarantees greater clamping force build-up in the shortest time, while maintaining greater stability and safety. The fixed clamp forged from a single piece with moulded pressure plate is hardened, tempered and galvanised, making it highly durable and torsion-resistant. The forged sliding arm has a shape that allows for more efficient transfer of force. As a result of its more linear transfer of force, the U‐shaped sliding arm offers maximum security with the heaviest of loads.

Supplied with:

1 x SG40M 400mm High-Performance Clamp

Key Features

• Clamping force up to 12,000 N at tightening torque of 40 Nm
• 20 % more clamping force per spindle rotation with optimised rail profile
• Maximum safety due to the better linear transfer of force of the sliding arm
• Long life due to heat‐resistant pressure plate with sintered steel insert, which can be tilted up to 35°

Specification

Opening: 400mm
Throat Depth: 140mmm
Rail: 34 x 13mm
Weight: 3.16kg
