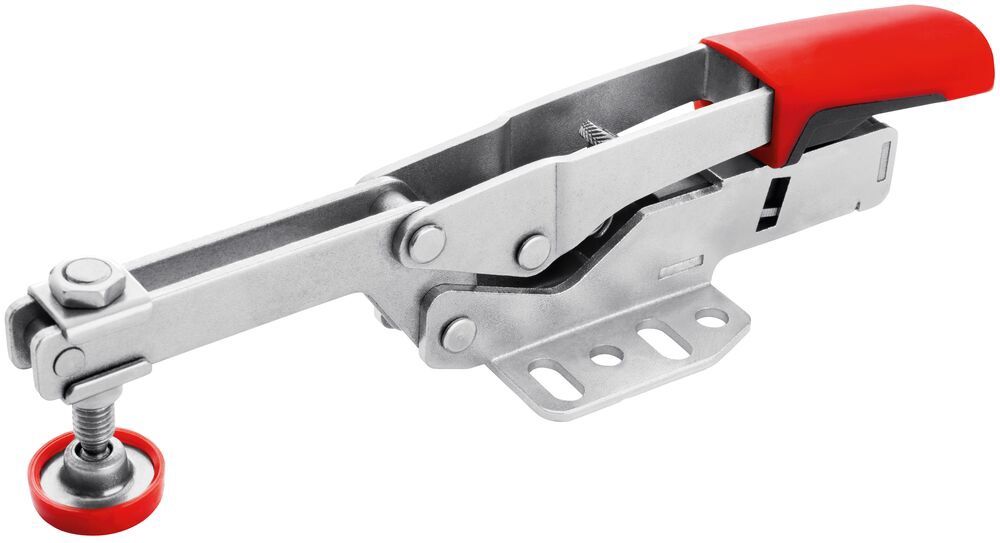

The Bessey STC-HH70SB Horizontal toggle clamp with open arm and horizontal base plate has automatic and infinitely variable adjustment of the clamping height up to 35 mm while clamping force remains unchanged – without having to make manual changes to the position of the pressure screws.

Supplied with:

1 x KBX K Body Parallel Clamp Extender

Key Features

• BESSEY STC toggle clamps adapt to workpieces of varying thickness without manual setting of the spindle and, with practically the same clamping force due to an automatic clamping width range
• Uncompromisingly versatile due to an extremely large clamping range, thanks to the patented mechanism
• Clamping force up to 750 N
• Even sensitive workpieces, e.g. with veneered or varnished surfaces, can be gently clamped due to moving pressure plate with removable protective cap
• In the clamped position, the lever is horizontal
• Hole pattern on the base plate designed to facilitate fast and secure clamping set-up for metric and imperial

Specification

Opening: 60mm
Automatic Adjustment: 35mm
Clamping Force: 2500 N
Weight: 0.42kg
