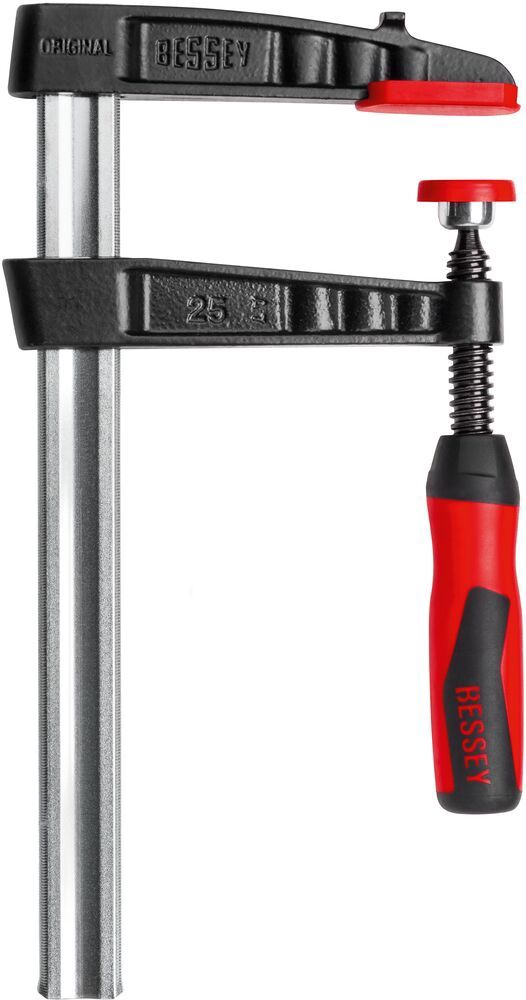

The Bessey malleable cast iron screw clamp TG with 2‑component plastic handle has a clamping force of up to 6000 N.

Supplied with:

1 x TG30-2K 300mm Screw Clamp

Key Features

• Integrated BESSEY anti-slip system - Maximum safety is available with the integrated BESSEY anti-slip system, when clamping with a throat depth of 80 mm or more. A set screw that is molded into the sliding arm interlocks with the serration on the rail. This effectively prevents the clamp from dislodging or slipping away.
• Reinforced malleable iron clamps - Both the upper and lower sections are produced from high-quality malleable iron and reinforced by shafts. The powder coating protects against corrosion and the characteristic shaft profile works as a reliable reinforcement against torsion forces.
• High‐quality profiled rail - The BESSEY profiled rail from our own drawing plant has been especially optimised for clamps. The serration on six faces additionally prevents the clamp from slipping.
• Pressure plate - For enhanced serviceability the pressure plate can be changed with no need for tools. It can be replaced very easily and quickly.

Specification

Opening: 300mm
Throat Depth: 140mm
Rail: 32 x 10mm
Weight: 2.19kg
