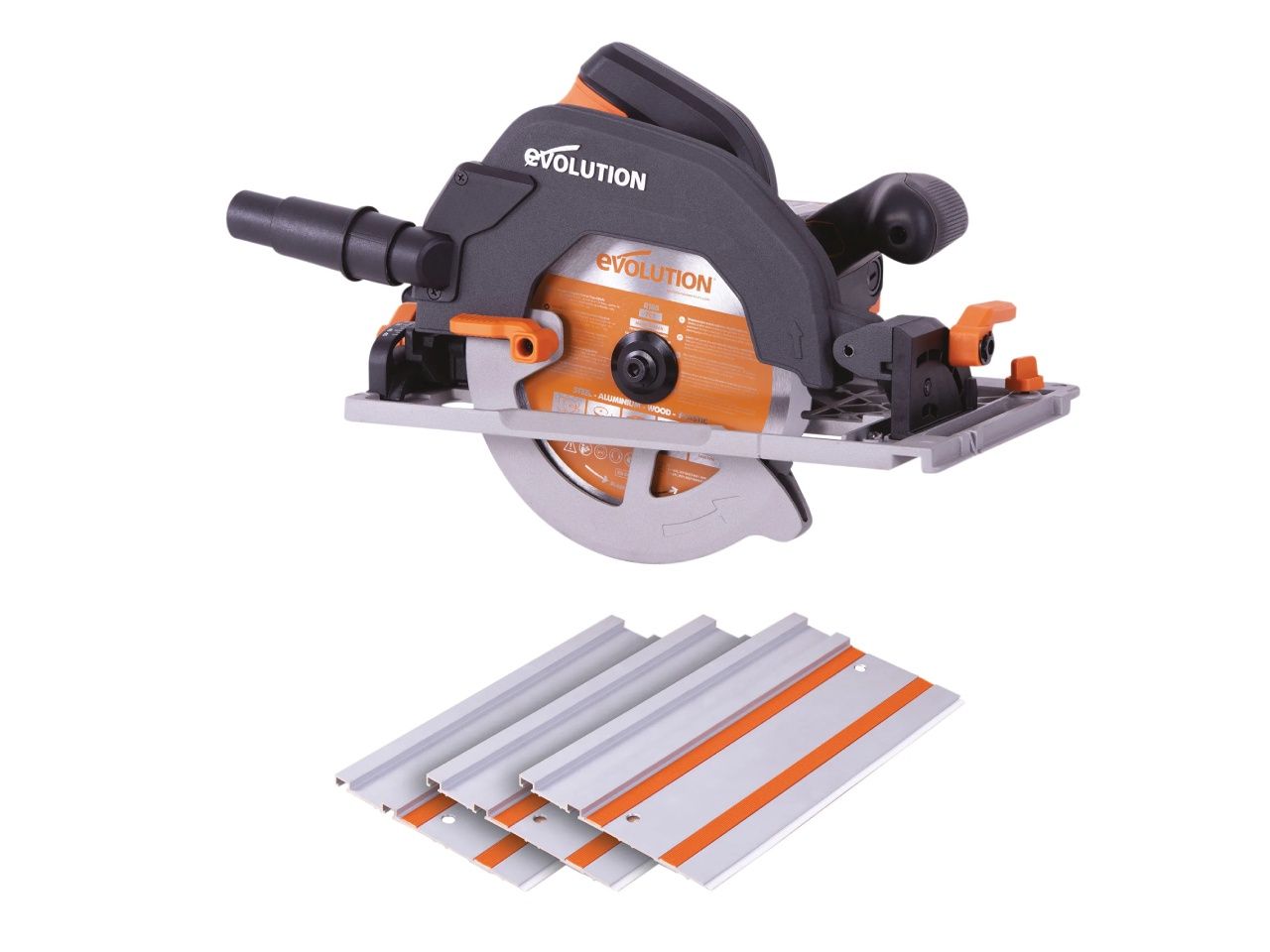

The Evolution R185CCSX 110V Circular Track Saw is ideal for both trade and DIY users thanks to its powerful motor and optimised gearbox. When combined with the Evolution R185TCT blade (supplied) it can cut through a variety of materials such as mild steel, aluminium, wood (even with embedded nails), plastic, copper, PVC and more. When cutting mild steel the saw produces a square, ready-to-weld cut with no heat, no burrs and virtually no sparks, far superior to abrasive cutting methods. The saw features an adjustable cutting depth and 0-45 ̊ bevel capabilities for versatile cutting in any material. It also features channelled air flow and a vacuum extraction port, that helps to keep the cutting line visible. The electric blade brake and blade guard (that closes in 0.4 seconds) improves user safety and reduces exposure to a spinning saw blade. Supplied with 1020mm of track which is perfect for making straight cuts in long or sheet materials with ease.  The saw is also compatible with the Evolution ST1400 and ST2800 tracks (sold separately). These saws have been developed to be compatible with most leading brands of circular saw tracks.

Supplied with:

1 x R185CCSX 110V Circular Saw
1 x Multi-Material TCT Blade
1 x Hex Key (Blade Change)
1 x Hex Key (Track Connecting)
1 x Parallel Edge Guide
1 x Dust Port Adapter
1 x Dust Hose Connector
1 x 1020mm Track (3x 340mm Sections)
4 x Connector Bars
16 x Screws

Key Features

• Multi-Material cutting technology. One saw, one blade, cuts all.*
• Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting.
• Reliable smooth square cutting every time in a variety of materials.
• Powerful 1600W hi-torque motor with optimized gearbox & blade system.
• 0° - 45° bevel tilt with a virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track.
• Ergonomic, soft-grip handles to provide maximum control, versatility, and precision.
• Dust extraction port & adaptor included for vacuum compatibility.
• 1020mm Circular Saw Track included. Supplied in 3x pieces with connectors.
• Compatible With Evolution's 1.4m & 2.8m Tracks (Sold Separately)
• Robust & sturdy construction with even weight distribution, weighing only 4.8kg
• Channelled airflow & base indicators ensure optimum visibility of your cutting line.
• Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
• 3 Year limited warranty.

Specification

Motor (110V 50Hz): 1600W
Speed No Load (110V): 3700 rpm
Max. Bevel (Left): 45°
Circular Saw Base: Cast Aluminium
Cable Length: 3m
Blade Dia.: 185mm
No. of Teeth: 16
Bore: 20mm
Kerf: 1.7mm
Max. Depth of Cut (0°): 64mm (59mm w/Track)
Max. Depth of Cut (45°): 47mm (42mm w/Track)
Mild Steel Plate (Max. Thickness): 3mm
Mild Steel Box Section (Max. Wall Thickness): 3mm
Product Dimensions: 255mm x 375mm x 265mm
Packaging Dimensions: 380mm x 300mm x 250mm
Product Weight: 5.1kg
Packaged Weight: 8.3kg
