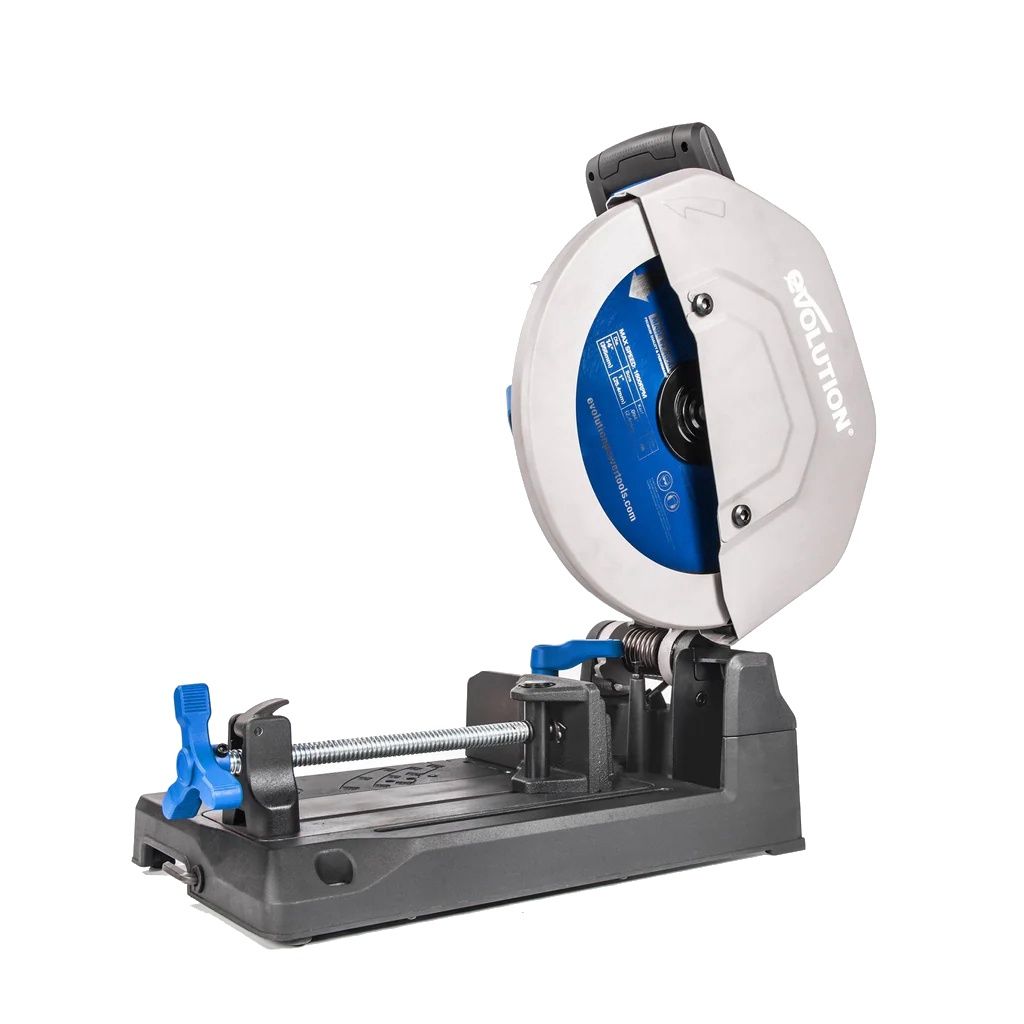

The Evolution S355CPS 240V Industrial Chop Saw is ideal for cutting steel plate, square tube, angle iron, pipe and metal roofing. When cutting steel, it leaves an instantly workable finish, producing no heat, no burr and virtually no sparks unlike alternative methods. The high-speed carbide-tipped blade gives you a finished product with a straight, clean edge. Fast action swivel vice enables cuts to be made from 0-45°. A hi-torque gearbox reduces motor load and improves performance, and a pull-out collection tray makes it easy to dispose of metal chips.

Supplied with:

1 x S355CPS 240V Chop Saw
1 x M355TCT-66 355mm 66 Tooth Mild Steel TCT Blade
1 x Blade Change Hex Key (8mm)
1 x V-Block

Key Features

• Accurate & durable cast steel vice with 0° - 45° mitre capacity & locking pin.
• Precise, accurate cuts that require no clean up for welding.
• Reliable construction, heavy-duty cast aluminium base with integrated wear plate & bench mounting holes.
• 355mm 66T Mild steel cutting TCT blade included, longer lasting and cleaner than abrasive cutting.
• Quick-release vice with robust square-threaded rod for fast & secure clamping.
• Compact design with a head lock down pin & carry handle for easy transportation.
• Chip collection tray for a cleaner, safer working environment.
• Ergonomic, ambidextrous trigger with comfortable textured grip.
• Attachable ‘v’ shape block included for secure clamping of round & square tube.
• Easy blade change with integrated tool storage.

Specification

Motor (240V 50Hz): 2200W
Speed No Load: 1550 min-1
Max. Bevel (Left): 45°
Cable Length: 3m
Blade Dia.: 355mm
No. of Teeth: 66
Bore: 25.4mm / 1 In.
Kerf: 2.4mm
Mild Steel Plate (Max Thickness): 12mm
Stainless Steel Plate (Max Thickness): 5mm
Square Tube at 90° (Mild Steel): 120 x 120mm
Square Tube at 45° (Mild Steel): 89 x 89mm
Rectangle Tube at 90° (Mild Steel): 95 x 180mm
Rectangle Tube at 45° (Mild Steel): 78 x 110mm
Round Tube at 90° (Mild Steel): Ø 130mm
Round Tube at 45° (Mild Steel): Ø 105mm
Minimum Cut Off Piece Length: 8 mm
Packaging Dimensions: 470 x 575 x 374mm
Product Dimensions: 410 x 530 x 310mm
Product Weight: 23.1 kg
Packaged Weight: 27 kg
