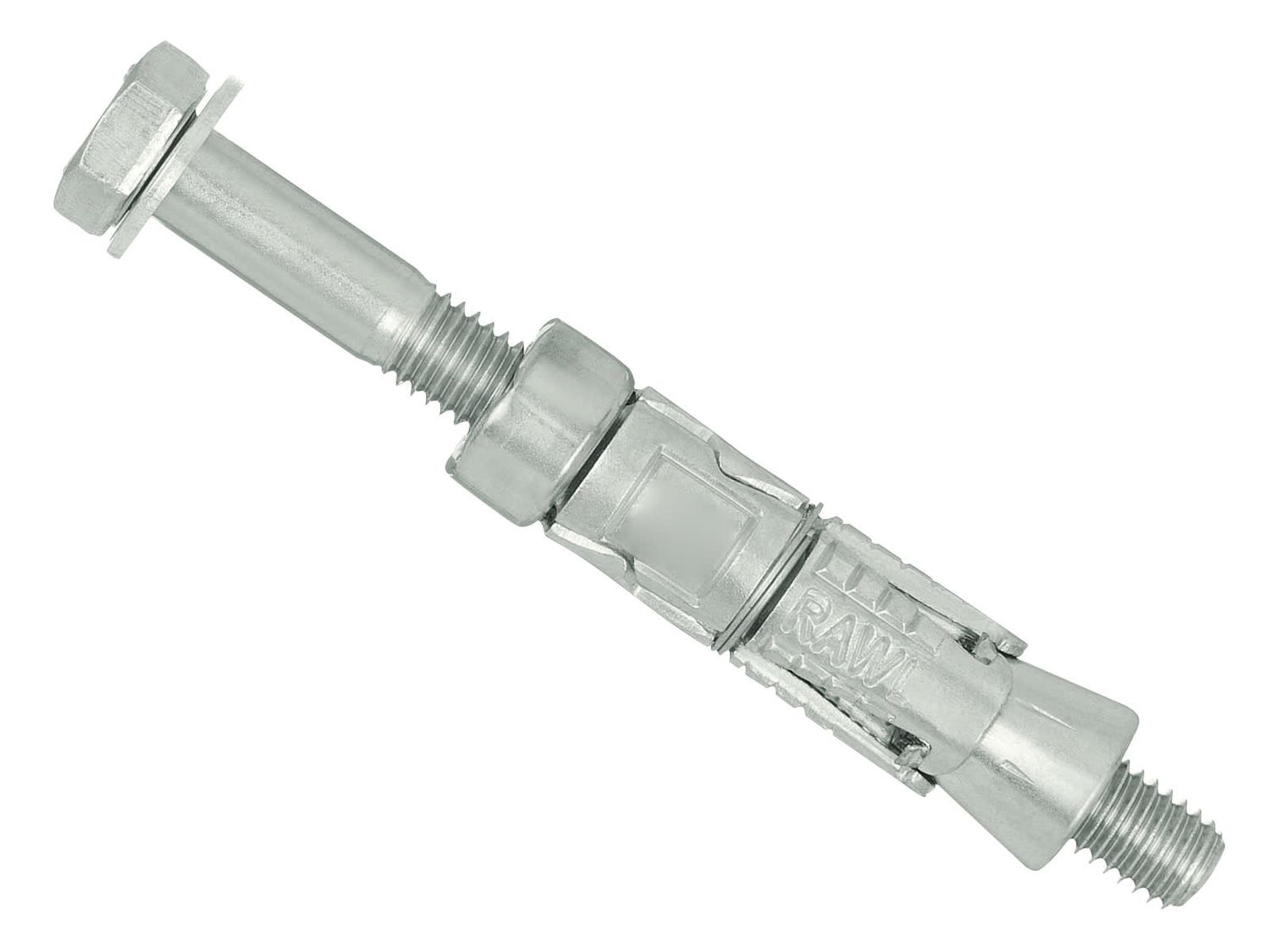

The Rawlplug Rawlbolt® Loose Bolt is suitable for use in cracked and non-cracked concrete (ETA option 1), hollowcore slabs, flooring blocks and ceramics. Recommended for applications requiring fire resistance.

With a three-piece expanding sleeve of maximum expansion to provide optimal load and safety of use in any substrate.

The world's most popular all-purpose expanding shield anchor, loose bolt version.

These Rawlplug Rawlbolt® Loose Bolts have the following specification:

Anchor
Diameter: 6mm
External Diameter: 12mm
Length: 55mm

Fixture
Max. Thickness: 10mm
Hole Diameter: 6.5mm

Hole Diameter in Substrate: 12mm
Installation Torque: 6.5
Wrench Size: 10
Min. Hole Depth in Substrate: 50mm
Min. Installation Depth: 45mm
Min. Substrate Thickness: 100mm
Min. Spacing: 35mm
Min. Edge Distance: 53mm

Pack Quantity: Bag of 5
