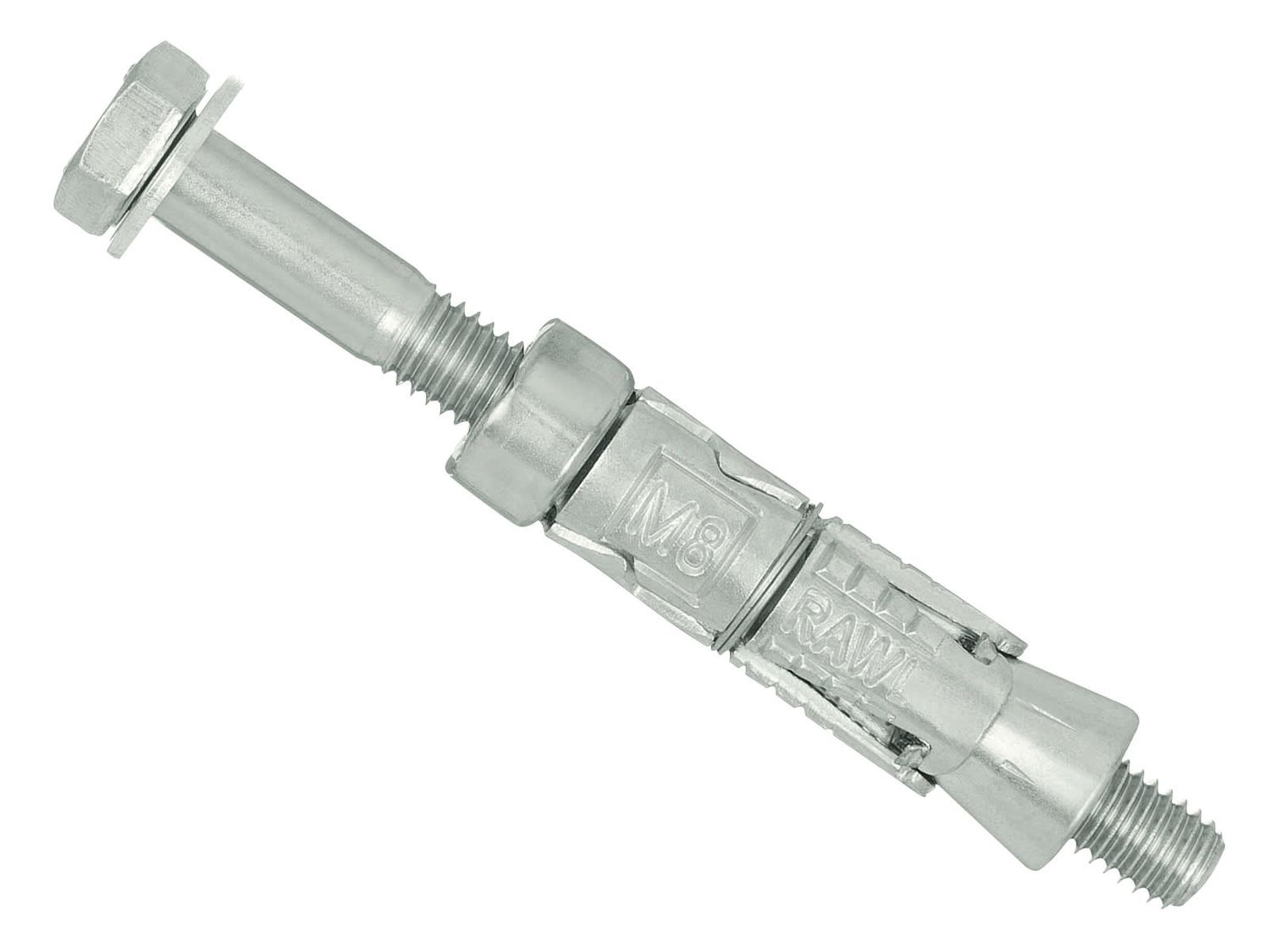

The Rawlplug Rawlbolt® Loose Bolt is suitable for use in cracked and non-cracked concrete (ETA option 1), hollowcore slabs, flooring blocks and ceramics. Recommended for applications requiring fire resistance.

With a three-piece expanding sleeve of maximum expansion to provide optimal load and safety of use in any substrate.

The world's most popular all-purpose expanding shield anchor, loose bolt version.

These Rawlplug Rawlbolt® Loose Bolts have the following specification:

Anchor
Diameter: 8mm
External Diameter: 14mm
Length: 80mm

Fixture
Max. Thickness: 25mm
Hole Diameter: 9mm

Hole Diameter in Substrate: 14mm
Installation Torque: 15
Wrench Size: 13
Min. Hole Depth in Substrate: 55mm
Min. Installation Depth: 50mm
Min. Substrate Thickness: 100mm
Min. Spacing: 40mm
Min. Edge Distance: 60mm

Pack Quantity: Bag of 5
