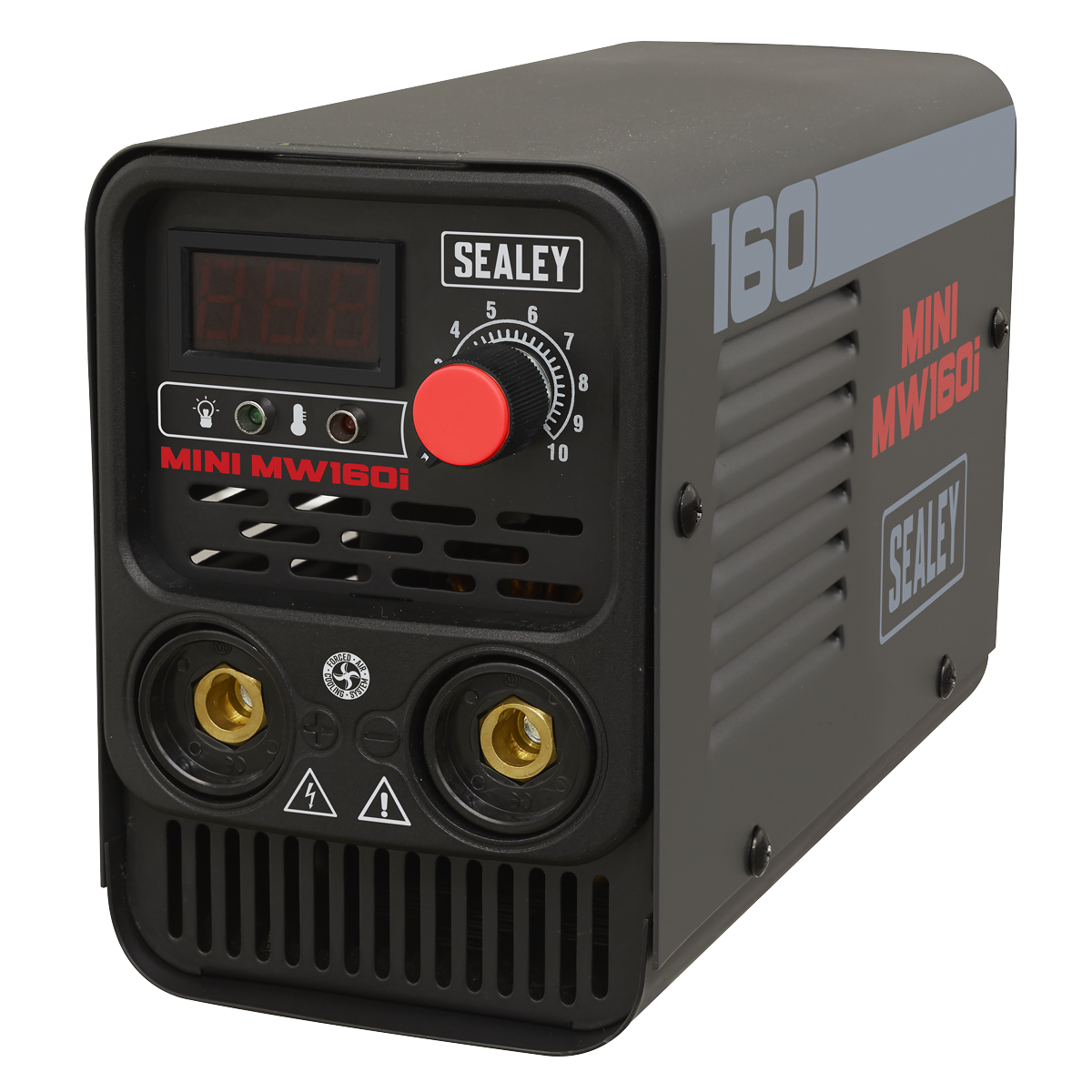

The Sealey MINIMW160i Inverter Welder 160A 230v.

Contents

1x Sealey MINIMW160i Inverter Welder 160A 230v

Key Features

• Ultra-compact and lightweight unit weighing just 4kg approx.
• Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
• Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø4mm.
• Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
• Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, both with 10-25 dinse connectors.
• Forced air cooling system.

Specification

Welding Current: 20-160A
Duty Cycle: 100% @ 124A, 60% @160A
Electrode Capacity: Ø1.6-4mm
Absorbed Power: 5kW
Supply: 230V-16A* *Note: To achieve maximum power a 16A supply may be required.
Protection: IP21S
Nett Weight: 4.1Kg
