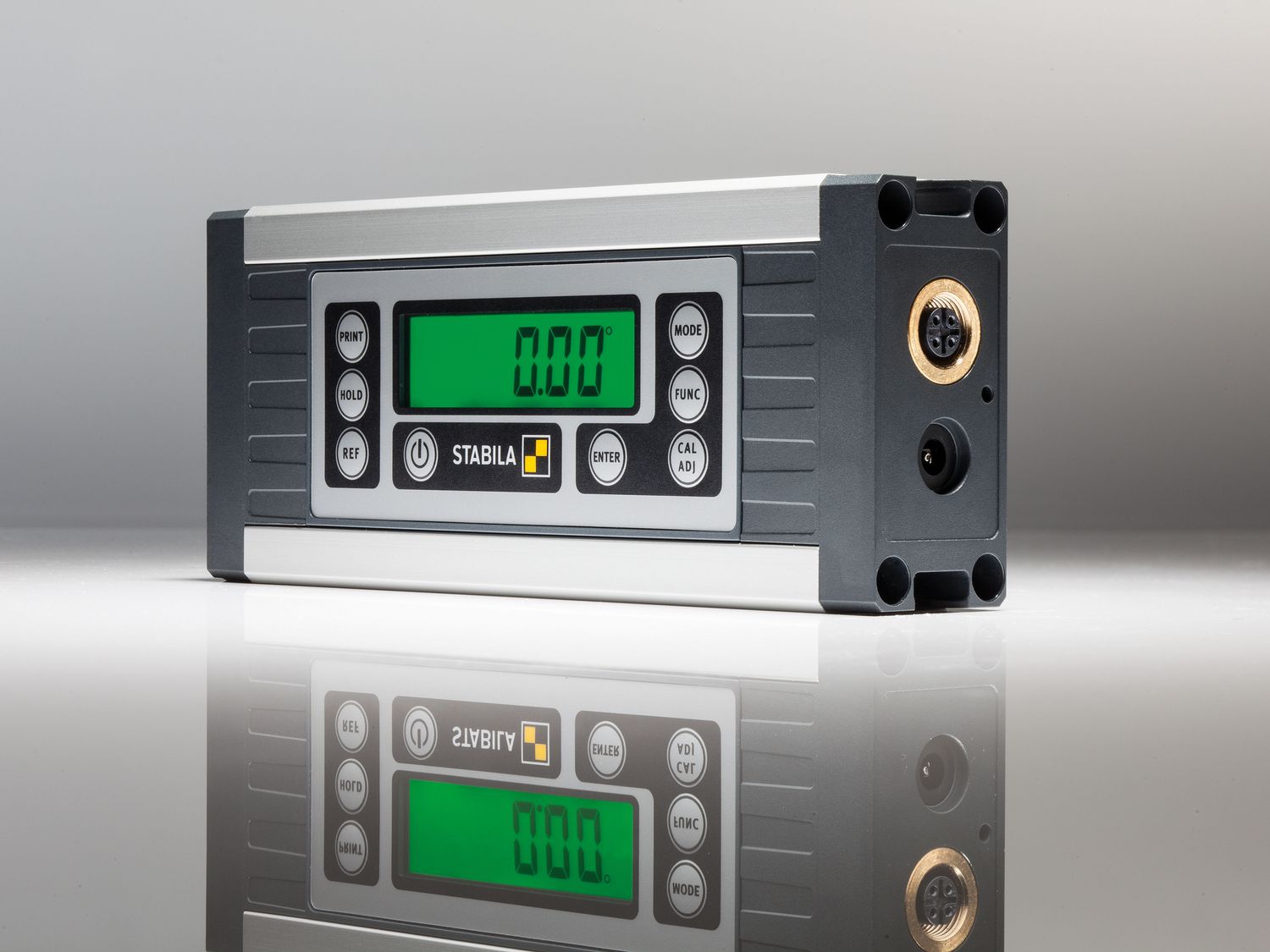

The Stabila TECH 1000 DP Digital Protractor provides an extensive measuring range of 0° to 360°. It allows smart data transmission to peripheral devices such as machine controllers and computers via MODBUS, the proven industry standard.

The TECH 1000 DP has a T-groove and V-groove, plus an integrated rare earth magnet which allow a range of options for mounting the tool in place. Compact and robust, it is waterproof and dustproof up to IP65. It features 2 anodised measuring surfaces and a digital display with lighting for optimal readability.

Supplied with:
1 x USB data cable with M12 connector
1 x 4-pin data cable with M12 connector

Specifications:
Display modes: °, %, mm/m, in/ft – decimal
Input Power: integrated Li-ion battery, mains plug or interface
Accuracy: ±0.05° at 0, 90,180 and 270°; ±0.1 at all other angles
Interface: RS485 with MODBUS protocol
